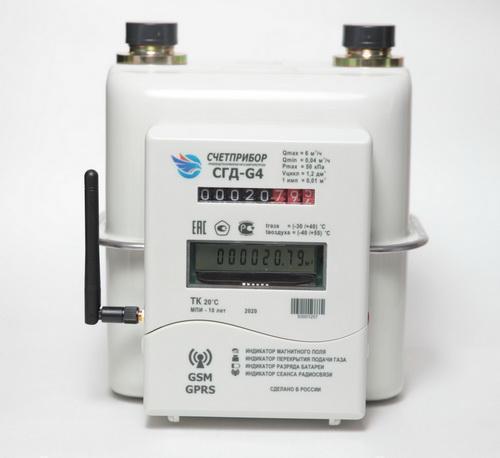

Public volumetric orifice gas meter SGD MTK GSM
The public volumetric orifice gas meter SGD MTK GSM is designed to meter the volume of natural gas or liquefied gas vapors, as well as other non-aggressive gases, with automatic reduction of the measured volume of gas to a standard temperature of 20 °C, and to transmit information over GSM cellular networks.
Application of the meters: commercial recording of gas in the housing and communal services.
Operating conditions of the meter: ambient air temperature from minus 40 to plus 55 °C, relative humidity up to 95% at a temperature of plus 35 °C and lower temperatures without condensation of moisture and in the absence of aggressive vapors and gases in the air.
It is prohibited to operate the meters under direct exposure to sunlight and precipitation!
- Cyclic volume, dm3
- 1.2
2 - Rated volume flow rate Qr, m3/h
- 1.6
2.5
4
6 - Maximum volume flow rate Qmin, m3/h
- 2.5
4.0
6
10 - Minimum volume flow rate Qmin, m3/h
- 0.016
0.025
0.040
0.060 - Sensitivity threshold Q0, m3/h, not exceeding
- 0.003
0.005
0.008
0.012 - Weight, kg, not exceeding
- 2
2.3 - Size, mm (length/width/height), mm
- 203 / 167 / 223
223 / 181 / 248
