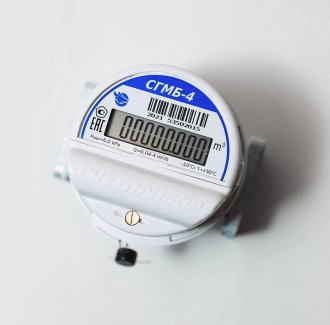

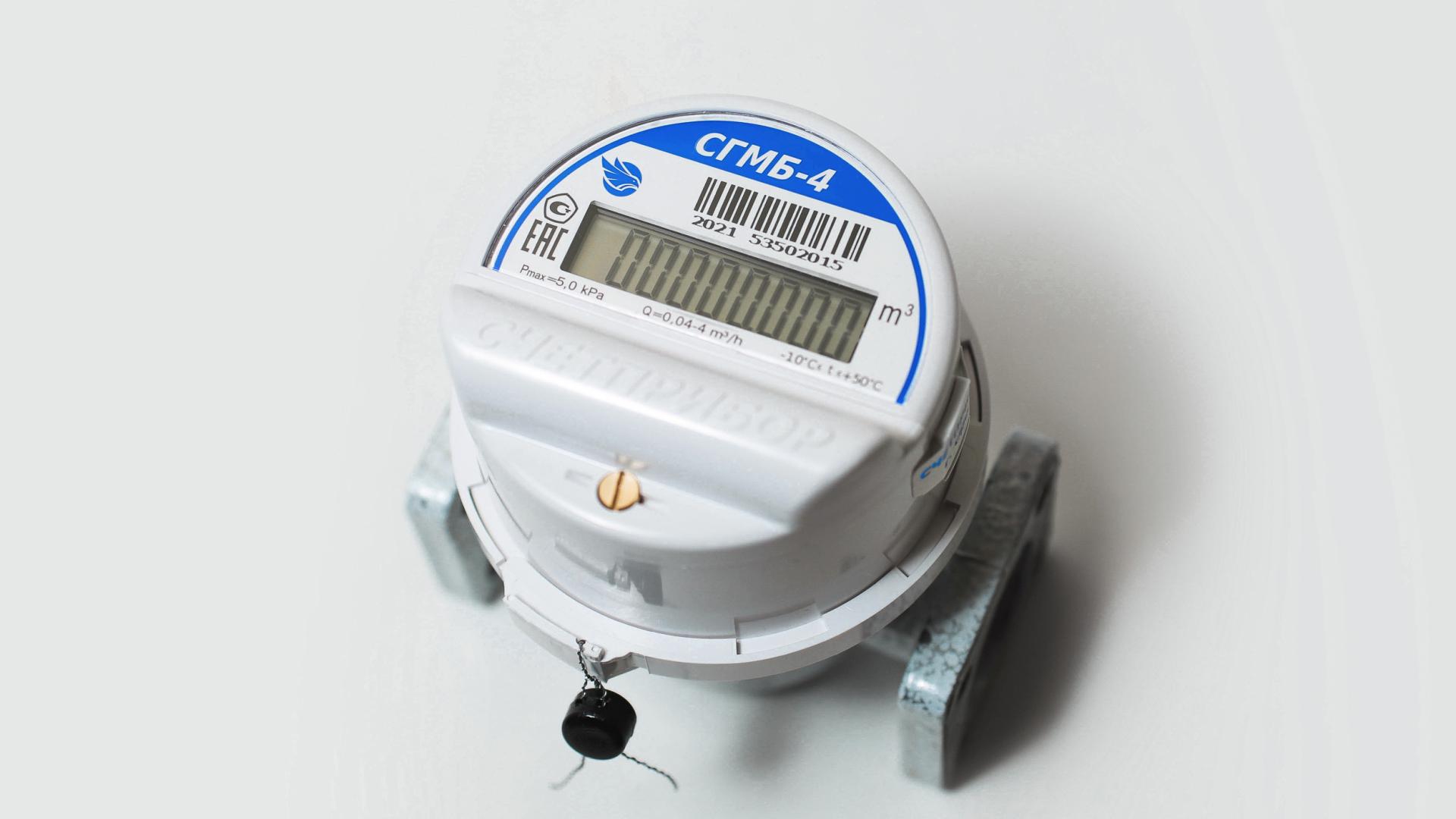

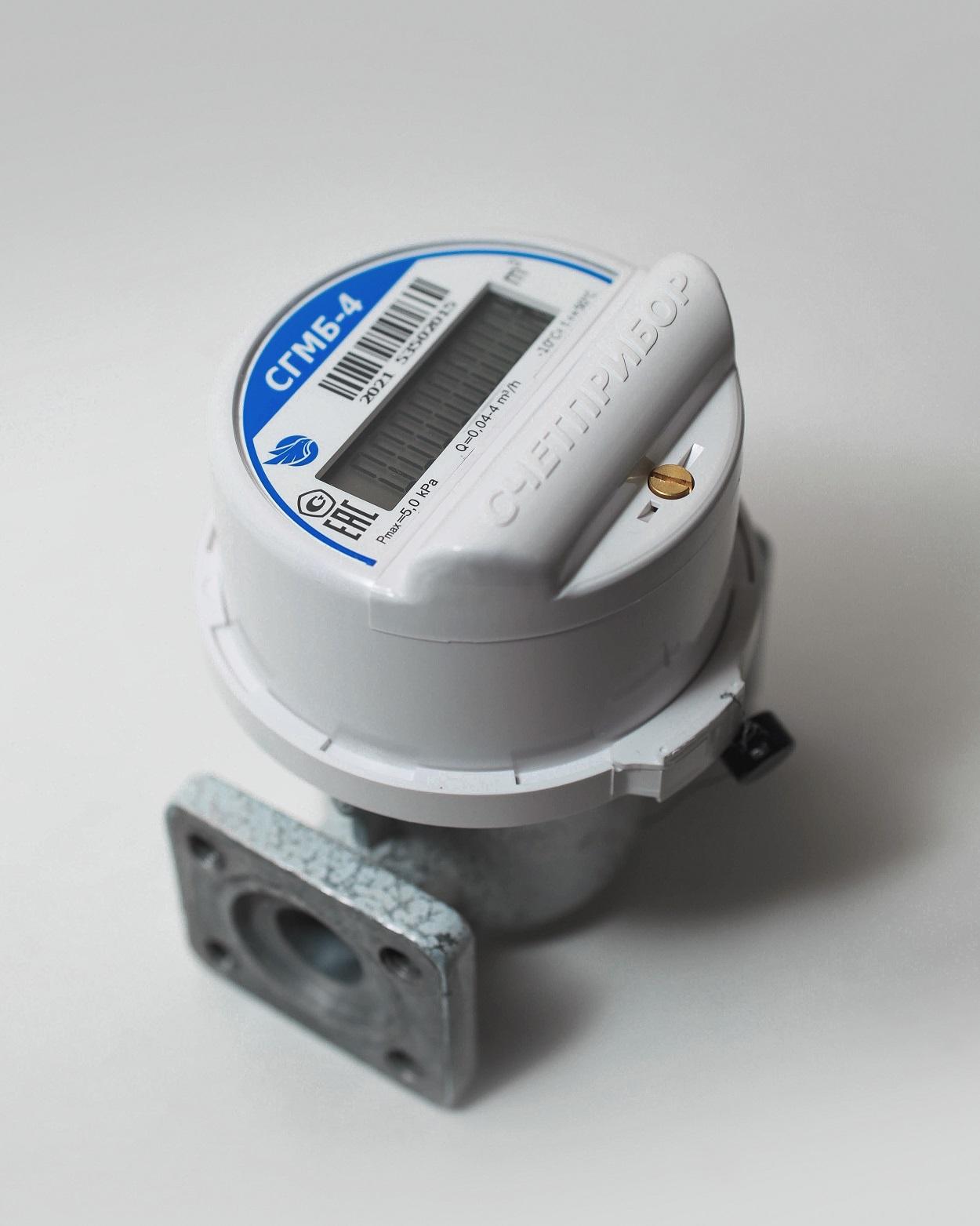

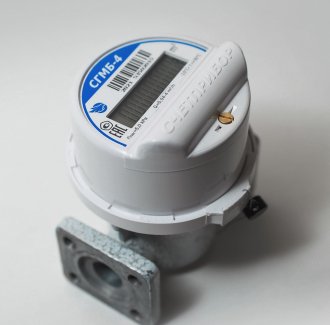

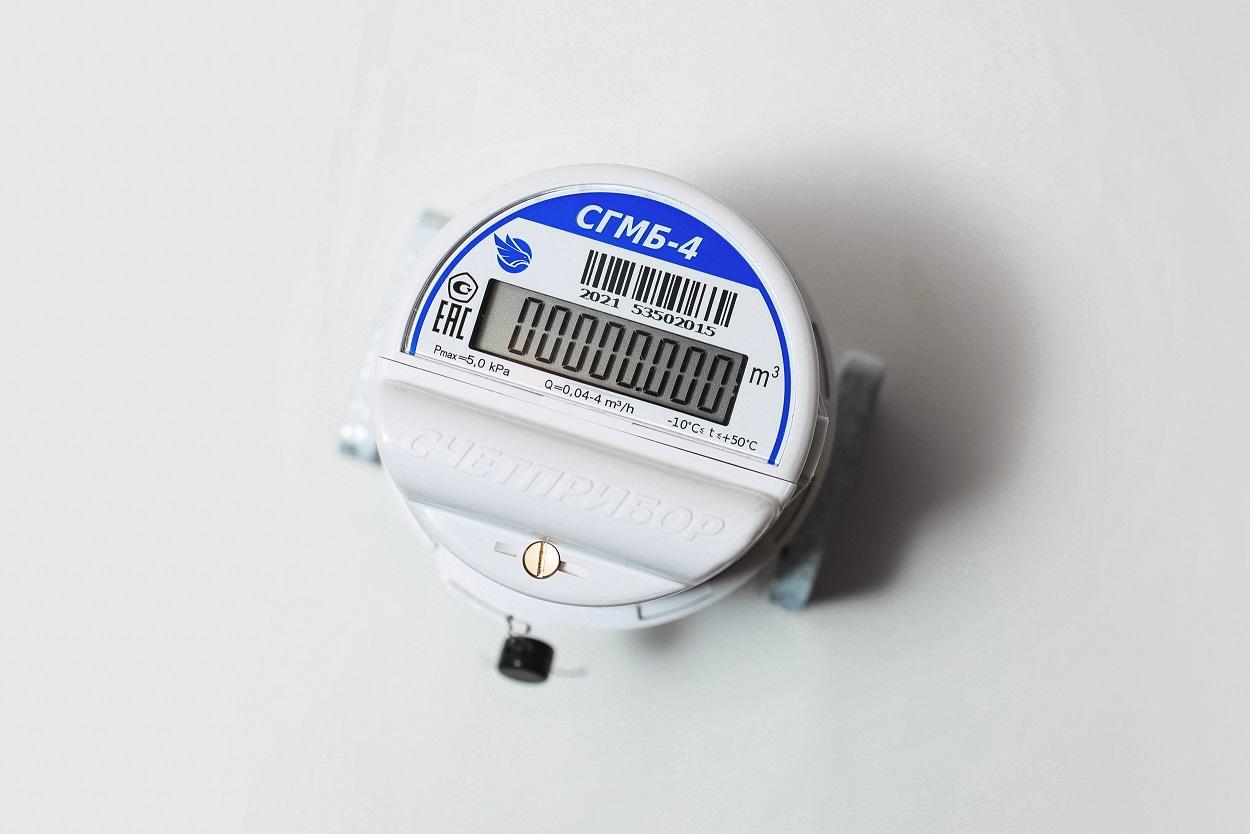

Small-sized domestic meter SGMB-4 with flanged connection
Small-sized domestic meter SGMB-4 with flanged connection is designed to measure the volume of gas passing through the meter (natural gas, liquefied gas vapors and other gases that are not aggressive to the meter's materials) used for domestic and industrial purposes.
The meter consists of:
- a jet self excited oscillator enclosed in a sealed housing with connecting pipes;
- an electronic unit;
- a lithium battery for power supply;
- a housing cover with a sealing ring
The meter features embedded sgmb.hex software
The meter is intended for operation both as an independent device and as part of information measuring systems and information and computing complexes for monitoring and accounting of energy resources.
- Declaration of Conformity
- Manual for power supply battery replacement
- Test procedure
- Operation manual of the SGMB with flanged connection
- Pattern Approval Certificate
- Certificate of the Republic of Belarus
- Certificate of the Republic of Kazakhstan
- Certificate of the Republic of Uzbekistan
- Certificate of Conformity
- Inside diameter (ID), mm
- 20
- Minimum volume flow rate Qmin, m3/h
- 0.040
- Maximum volume flow rate Qmin, m3/h
- 4.0
- Ambient temperature range, °C
- -10 to +50
- Lithium battery power supply voltage, V
- 3.6
- Weight, kg, not exceeding
- 0.6
- Size, mm (length/width/height), mm
- 92 / 84 / 102
