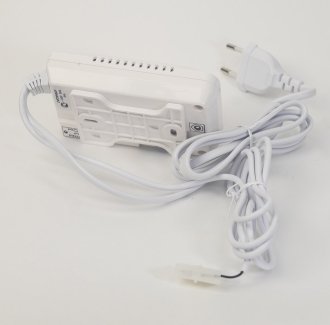

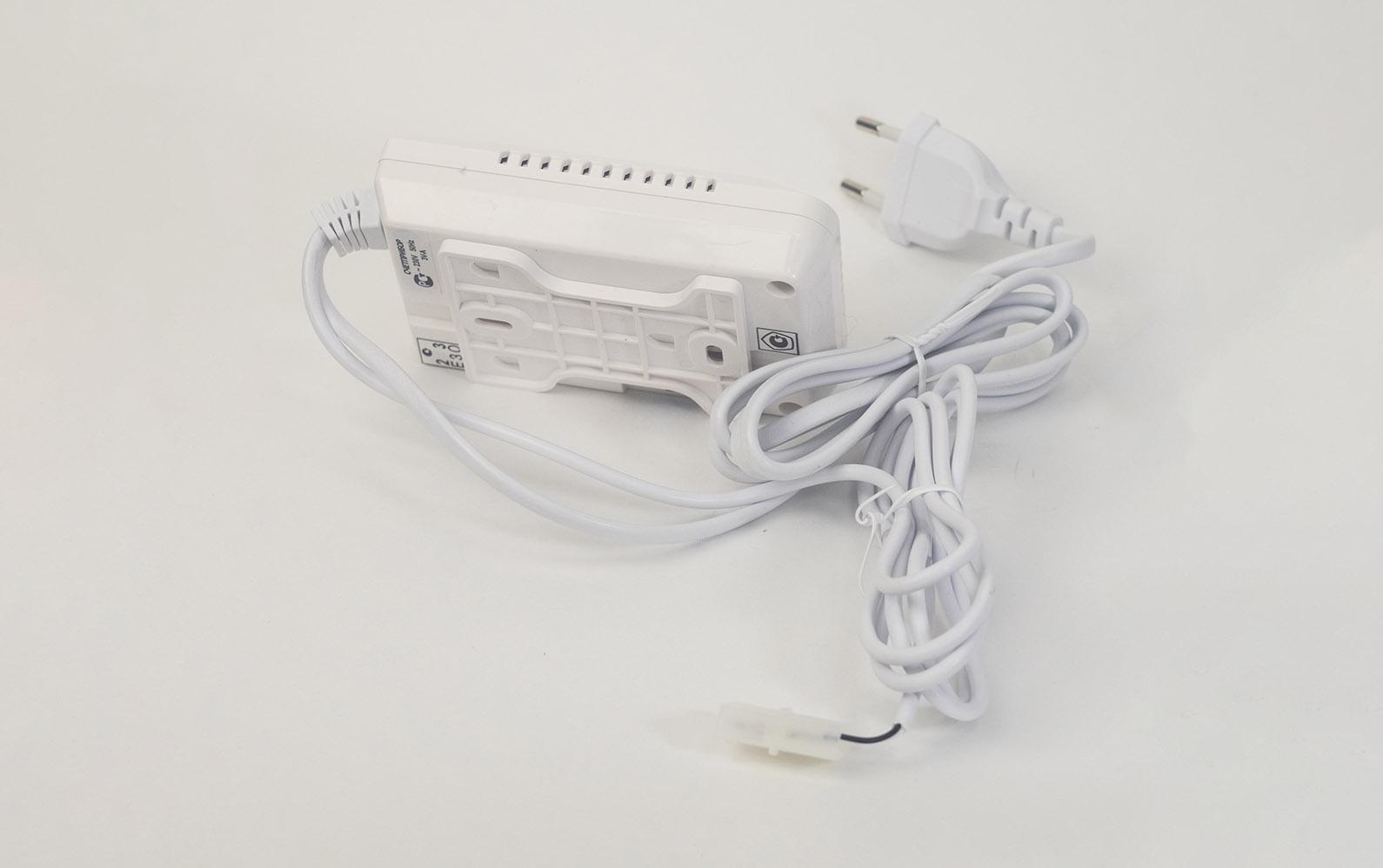

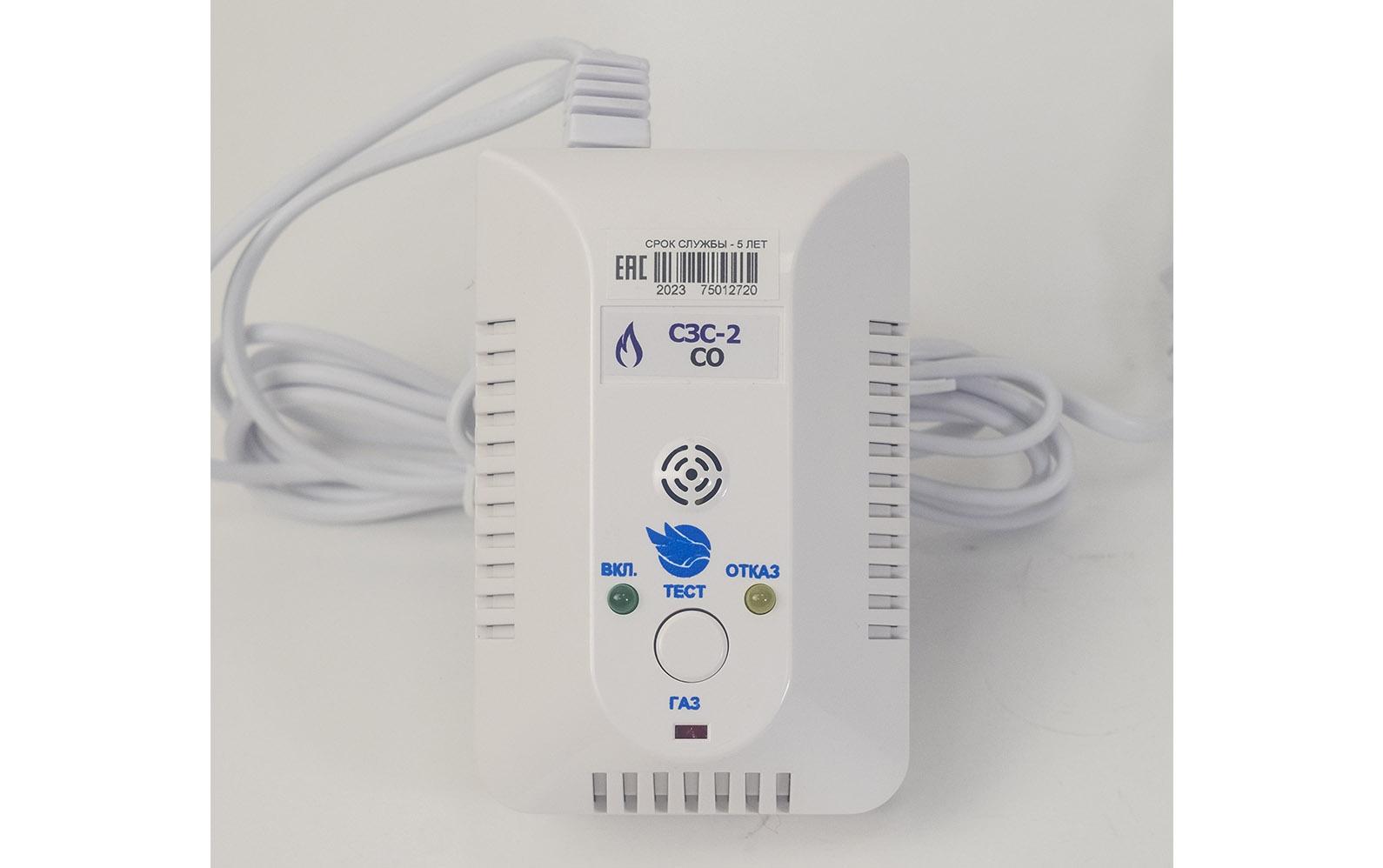

Gas contamination alarm Schetpribor SZS-2
The gas contamination alarm "Schetpribor" SZS-2 is designed for continuous automatic monitoring of the content of carbon monoxide (CO) in the air and signaling the excess of the established threshold values of the content of controlled components.
The alarm can operate both separately and in conjunction with shut-off gas valves KZG manufactured by CJSC "Schetpribor", or similar valves of other manufacturers.
The principle of operation of the alarms is thermochemical for determination of combustible gases and electrochemical for determination of carbon monoxide.
The alarms are stationary continuous devices with power supply from a single-phase AC network.
The scope of application is non–explosive zones of residential, communal and industrial premises.
Controlled gas: CO – carbon monoxide
- Power consumed VA, no more than
- 3
- Dimensions (without mains cable) not to exceed, mm
- 115 х 72 х 45
- Mains cable length, at least, mm
- 1000
- AC power supply voltage, V
- 230 ± 10 %
- Weight, kg, not exceeding
- 0.3
